🖥️ Backlight & Uniformity Diagnostic

Screen Bleeding & IPS Glow Diagnostic Test

Inspect your monitor panel in pure dark conditions to distinguish RMA-eligible backlight bleeding from normal IPS optical glow with 9-zone quadrant mapping.

Press ESC to exit fullscreenRecommended: Perform this test in a dimly lit room with screen brightness set to 60-80%

How to Distinguish Backlight Bleed from IPS Glow

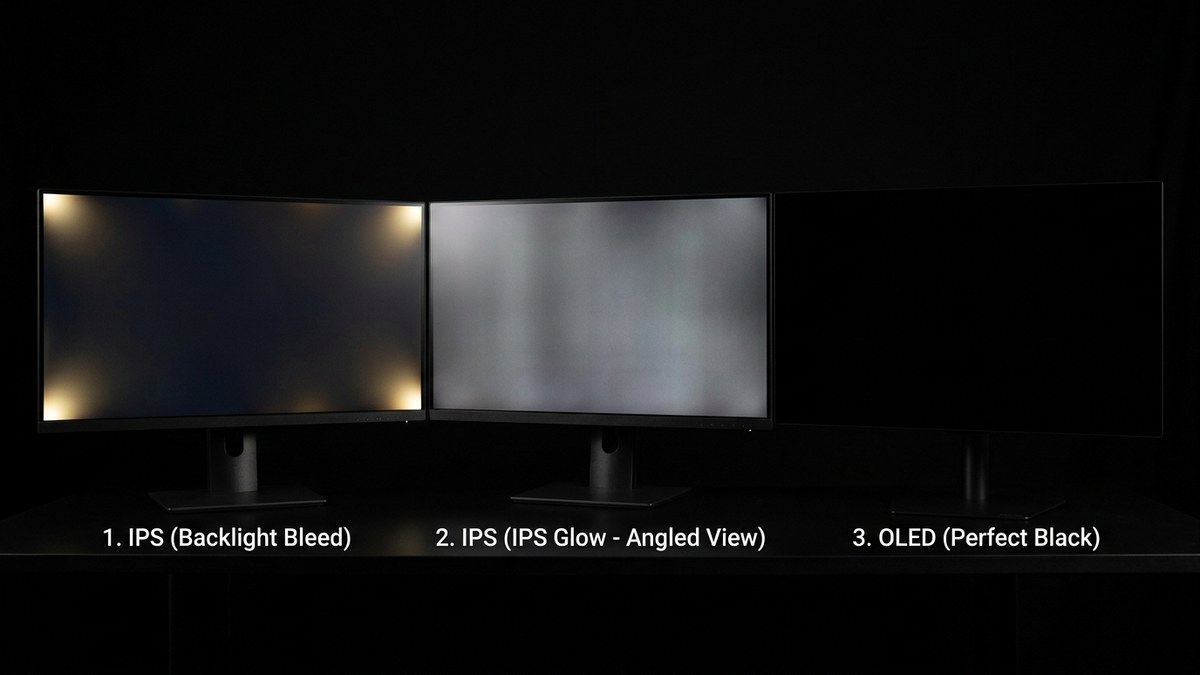

Visual comparison of monitor backlight bleed vs IPS glow viewing angle sheen vs OLED true black
✨Panel Comparison
Figure 3.1: Visual disparity between mechanical bezel pressure bleed (fixed edge light), IPS crystal viewing angle glow, and OLED per-pixel zero-emission black level.
Diagnostic FactorBacklight Bleeding (Hardware Defect)IPS Glow (Optical Characteristic)
Viewing Angle TestRemains in the exact same spot regardless of head movement.Changes intensity and shifts position as you move your head.
Distance TestVisible even when standing 6+ feet away from the screen.Diminishes significantly as you step back from the monitor.
AppearanceSharp, focused light leaks along bezel edges or frame pinch points.Broad, diffused silver/amber glow across the outer corners.
Warranty StatusEligible for RMA replacement if severe.Normal panel behavior; not covered under warranty.

Step-by-Step Monitor Backlight Bleed RMA Protocol

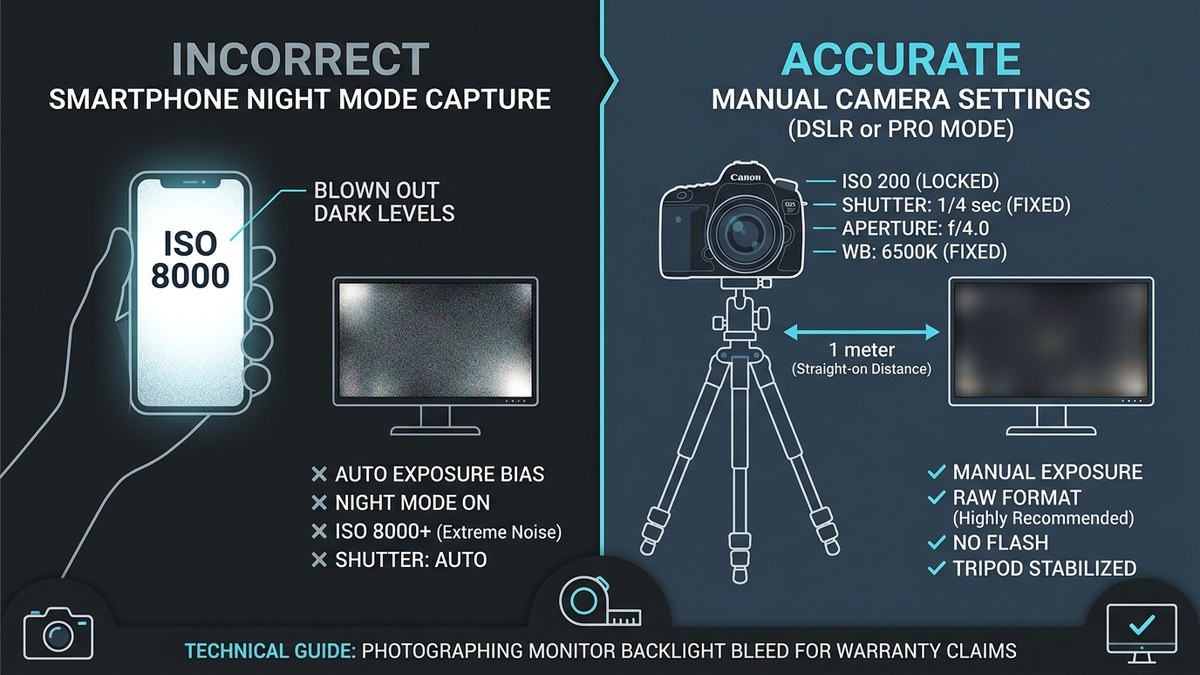

Camera calibration setup guide for photographing monitor screen bleeding for warranty RMA claims
✨Calibration Guide
Figure 3.2: Step-by-step photography calibration guide: avoiding smartphone auto-exposure ISO blowouts with locked ISO 200 and 1/4s shutter speed.
  1. Calibrate Display Brightness: Set your monitor brightness between 120 and 150 nits (typically 40% to 65% in the OSD menu). Cameras artificially overexpose phone photos at 100% brightness.
  2. Capture Exposure-Locked Photos: Set your smartphone camera to Manual/Pro Mode. Lock ISO to 100-200 and shutter speed to 1/15s to capture what the human eye actually sees.
  3. Test Quadrant Uniformity: Using our 9-Zone Quadrant Grid, document which specific zones (Zone 1 TL, Zone 3 TR, Zone 7 BL, Zone 9 BR) exhibit physical light pinching.
Tools Suite#000000

Pure Black Screen

Instant 100% pure #000000 OLED calibration screen.

Display Suite8 Colors

Dead Pixel Tester

Inspect panels with 8 primary high-contrast color screens.

Display SuitePrecision

Middle of Monitor Finder

Pinpoint your exact sub-pixel screen center coordinates.

Hardware Knowledge Base

Frequently Asked Questions

Technical answers to common hardware, refresh rate, and browser diagnostic questions.

How do I test my monitor for backlight bleeding?

Darken your room, set your monitor brightness to your normal working level (e.g. 50-70%), and click 'Launch Fullscreen Black Test' above. Inspect the corners and edges for uneven yellow, white, or blue light patches.

Is backlight bleed covered under monitor manufacturer warranties (RMA)?

Severe backlight bleed visible during normal desktop usage or letterboxed movie playback is generally covered for replacement. Minor IPS glow that shifts with your head position is considered normal panel behavior and is not eligible for RMA.

Can backlight bleed get worse over time?

Backlight bleed is caused by physical bezel pressure and adhesive tension. It rarely worsens unless the monitor is subjected to physical impact, excessive frame twisting, or extreme thermal expansion cycles.
