🔍 Pixel Integrity & Flasher

Dead Pixel Tester & Sub-Pixel Flasher

Inspect your monitor panel across 8 primary high-contrast screens to locate dead, stuck, and hot sub-pixels, and activate rapid RGB excitation to unstick frozen crystals.

Select Test Color:
Active: Pure Black (#000000)Click screen or press Spacebar to cycle colors • Press ESC to exit

Pixel Defect Taxonomy: Dead vs Stuck vs Hot Pixels

Modern LCD and OLED panels consist of millions of pixels, each containing three independent sub-pixels: Red, Green, and Blue.

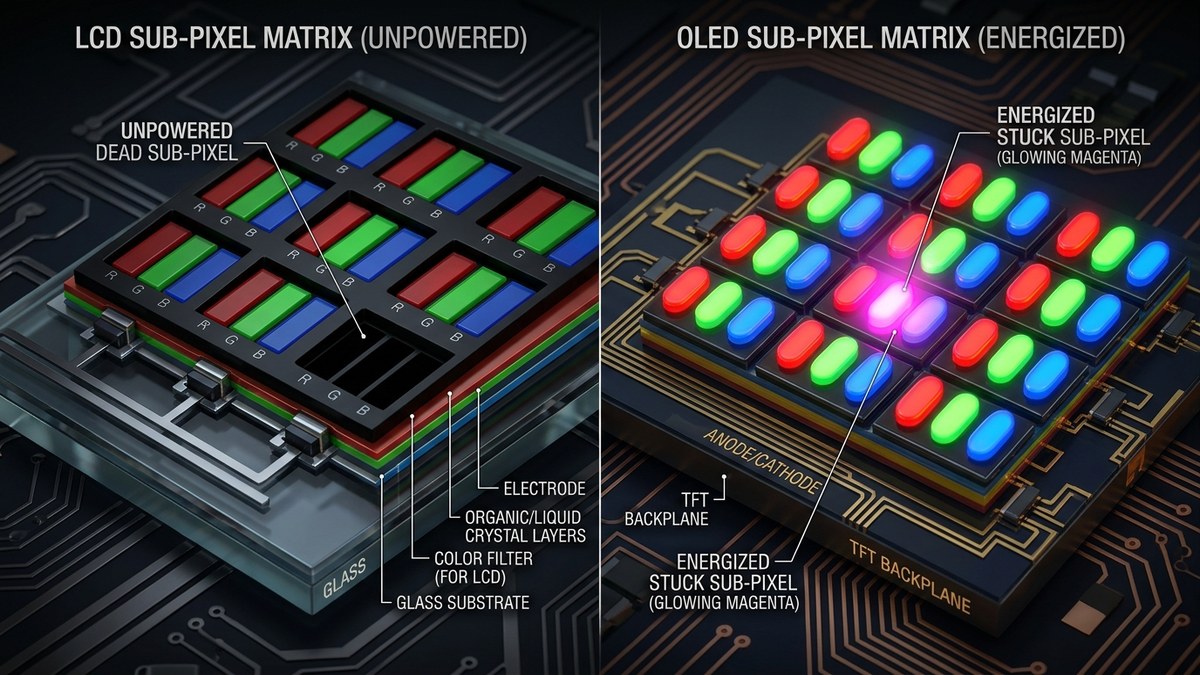

Microscopic sub-pixel schematic showing dead pixel unpowered transistor vs stuck energized sub-pixel diode
✨Sub-Pixel Schematic
Figure 7.1: Sub-pixel transistor schematic illustrating an unpowered black dead sub-pixel vs. a permanently energized stuck sub-pixel diode.
  • Dead Pixel (Type 2 Defect): A transistor that receives zero electrical current. Appears as a permanent dark black dot on white, red, green, and blue backgrounds.
  • Stuck Pixel (Type 1 Defect): A liquid crystal cell locked in an open state. Appears as a bright red, green, blue, or magenta dot on black backgrounds.
  • Hot Pixel: All three sub-pixels permanently stuck 'on', creating a bright white dot on completely dark screens.

ISO 9241-307 Manufacturer Pixel Defect Classes

ISO Defect ClassType 1 (Hot Pixels)Type 2 (Dead Pixels)Type 3 (Stuck Sub-Pixels)
Class 0 (Zero Tolerance)0 per 1M px0 per 1M px0 per 1M px
Class 1 (Premium Panels)1 per 1M px1 per 1M px2 per 1M px
Class 2 (Standard Gaming)2 per 1M px2 per 1M px5 per 1M px
Class 3 (Budget Displays)5 per 1M px15 per 1M px50 per 1M px
Tools SuiteRGB Fixer

Dead Pixel Fixer Utility

Dedicated rapid sub-pixel RGB strobe oscillator with customizable frequency.

Display SuiteUniformity

Screen Bleeding Test

Check monitor backlight leaks and 9-zone quadrant uniformity.

Tools Suite#ffffff

Pure White Uniformity Screen

100% full-screen pure white calibration screen.

Hardware Knowledge Base

Frequently Asked Questions

Technical answers to common hardware, refresh rate, and browser diagnostic questions.

What is the difference between a dead pixel and a stuck pixel?

A dead pixel is completely unpowered and permanently appears as a black dot on light backgrounds. A stuck pixel has one or more sub-pixels (Red, Green, or Blue) frozen in an 'on' state, displaying as a bright colored point on dark backgrounds.

Can an RGB sub-pixel flasher fix stuck pixels?

Yes, rapid high-frequency RGB color strobing (30Hz–60Hz) exercises the liquid crystals in the stuck sub-pixel, successfully unsticking over 60% of stuck pixels within 10 to 30 minutes of continuous operation.

How many dead pixels justify an RMA warranty replacement?

Under the ISO 9241-307 Class 2 display standard, most manufacturers allow up to 2 permanently bright pixels, 2 permanently dark pixels, or 5 defective sub-pixels per million pixels before an RMA replacement is approved.
